Kafka advance

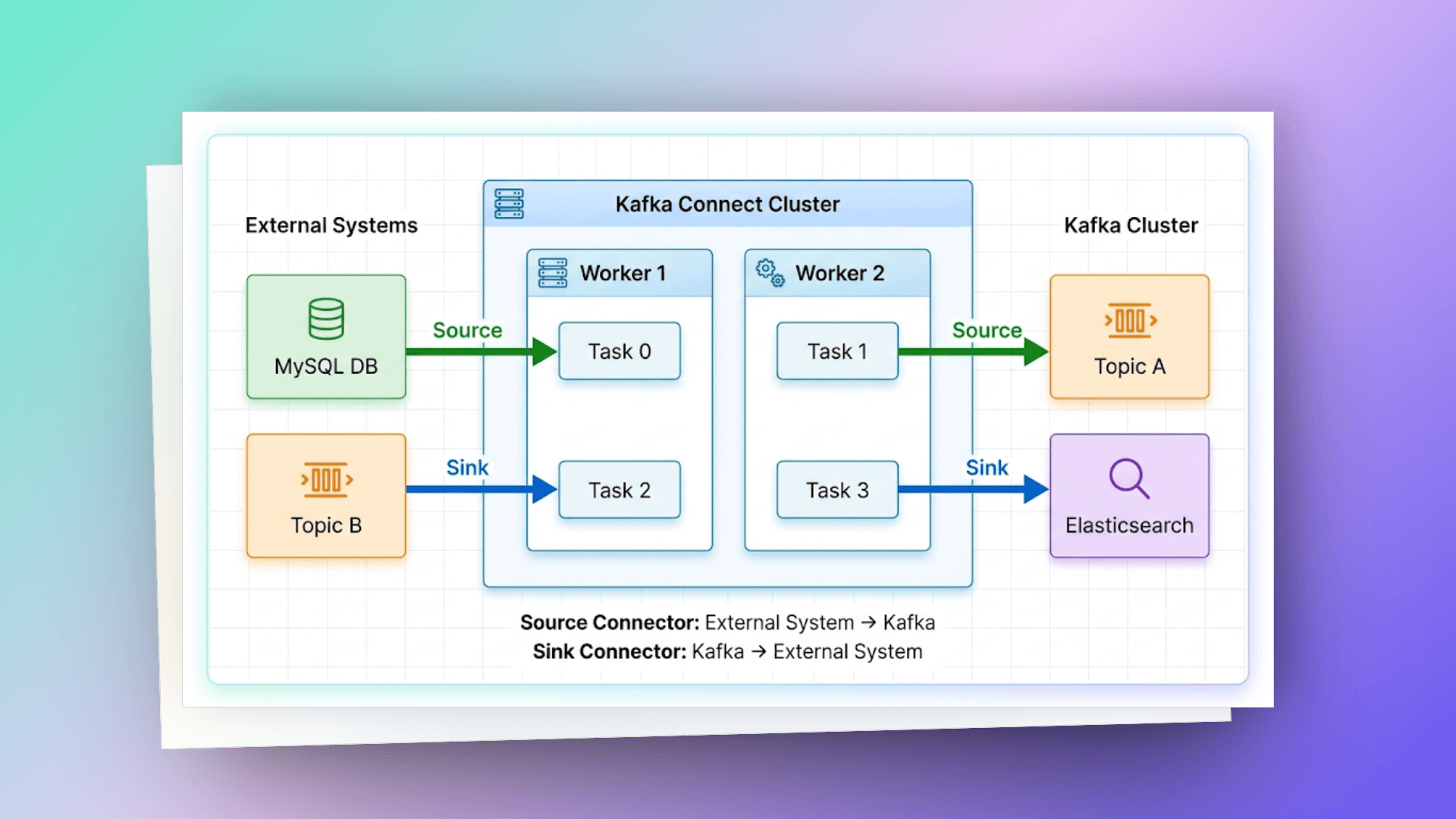

// POST http://localhost:8083/connectors
{
  "name": "mysql-source-orders",
  "config": {
    "connector.class": "io.confluent.connect.jdbc.JdbcSourceConnector",
    "connection.url": "jdbc:mysql://mysql:3306/ecommerce",
    "connection.user": "${file:/secrets/mysql.properties:user}",
    "connection.password": "${file:/secrets/mysql.properties:password}",

    "table.whitelist": "orders,order_items",

    "mode": "timestamp+incrementing",
    "incrementing.column.name": "id",
    "timestamp.column.name": "updated_at",

    "topic.prefix": "mysql.",
    "poll.interval.ms": "1000",

    "transforms": "createKey,extractInt",
    "transforms.createKey.type": "org.apache.kafka.connect.transforms.ValueToKey",
    "transforms.createKey.fields": "id",
    "transforms.extractInt.type": "org.apache.kafka.connect.transforms.ExtractField$Key",
    "transforms.extractInt.field": "id"
  }
}

{
  "name": "elasticsearch-sink-orders",
  "config": {
    "connector.class": "io.confluent.connect.elasticsearch.ElasticsearchSinkConnector",
    "connection.url": "http://elasticsearch:9200",

    "topics": "mysql.orders",
    "type.name": "_doc",
    "key.ignore": "false",
    "schema.ignore": "true",

    "behavior.on.null.values": "delete",
    "write.method": "upsert",

    "batch.size": 200,
    "max.buffered.records": 5000,
    "flush.timeout.ms": 120000
  }
}

{
  "transforms": "route,timestamp,mask",

  // Route messages đến topic khác nhau dựa trên field
  "transforms.route.type": "org.apache.kafka.connect.transforms.RegexRouter",
  "transforms.route.regex": "mysql\\.(.*)",
  "transforms.route.replacement": "processed.$1",

  // Thêm timestamp field
  "transforms.timestamp.type": "org.apache.kafka.connect.transforms.InsertField$Value",
  "transforms.timestamp.timestamp.field": "ingested_at",

  // Mask sensitive fields
  "transforms.mask.type": "org.apache.kafka.connect.transforms.MaskField$Value",
  "transforms.mask.fields": "credit_card,ssn",
  "transforms.mask.replacement": "****"
}

# List tất cả connectors
GET http://localhost:8083/connectors

# Status của connector
GET http://localhost:8083/connectors/mysql-source-orders/status

# Pause connector
PUT http://localhost:8083/connectors/mysql-source-orders/pause

# Resume connector
PUT http://localhost:8083/connectors/mysql-source-orders/resume

# Restart failed task
POST http://localhost:8083/connectors/mysql-source-orders/tasks/0/restart

# Delete connector
DELETE http://localhost:8083/connectors/mysql-source-orders

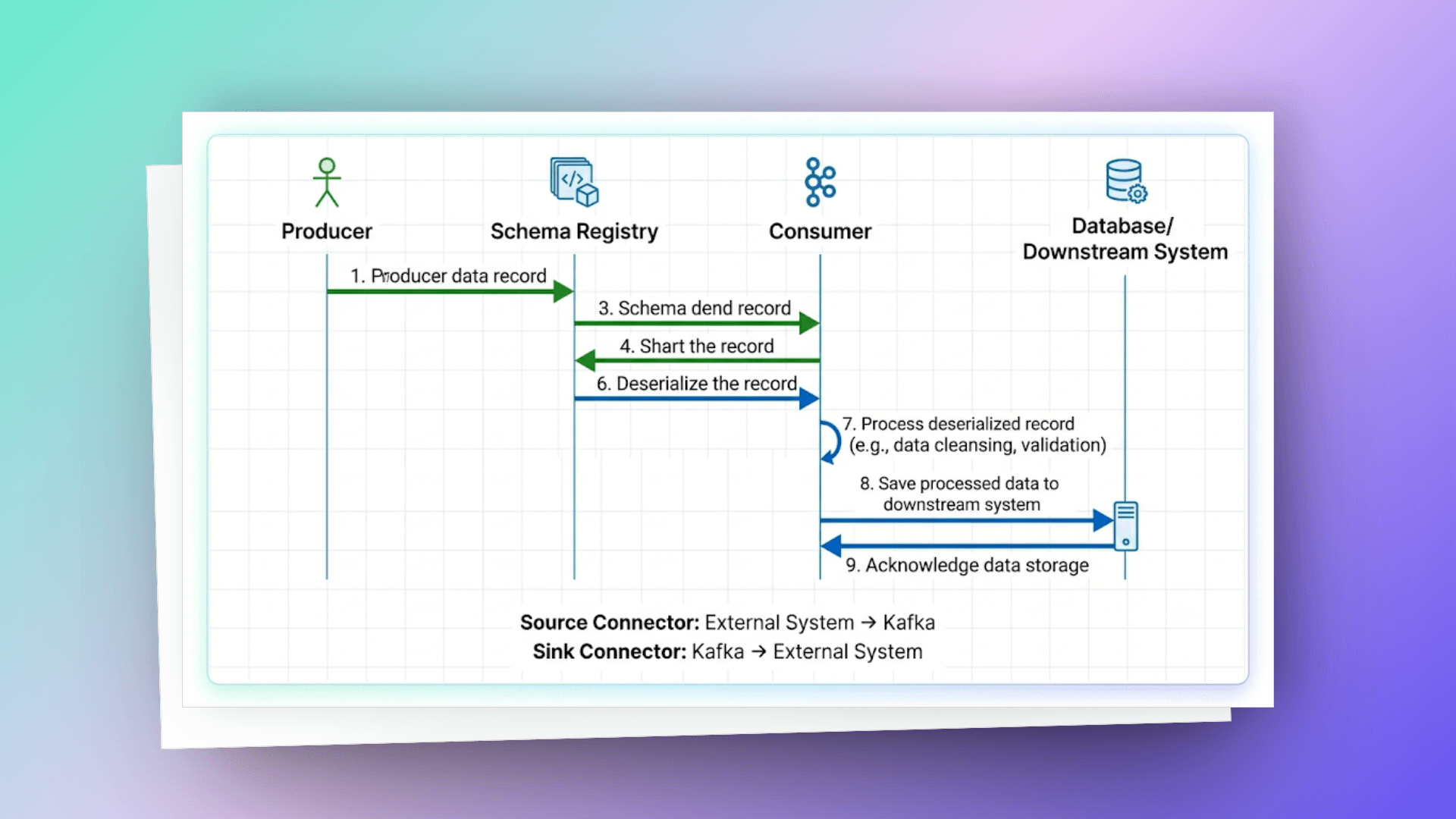

// order-event.avsc
{
  "type": "record",
  "name": "OrderEvent",
  "namespace": "com.example.events",
  "fields": [
    { "name": "orderId", "type": "string" },
    { "name": "userId", "type": "string" },
    { "name": "amount", "type": "double" },
    {
      "name": "status",
      "type": {
        "type": "enum",
        "name": "OrderStatus",
        "symbols": ["CREATED", "CONFIRMED", "SHIPPED", "DELIVERED", "CANCELLED"]
      }
    },
    { "name": "timestamp", "type": "long", "logicalType": "timestamp-millis" },
    // Field mới với default value → backward compatible
    { "name": "currency", "type": "string", "default": "USD" },
    // Optional field
    { "name": "notes", "type": ["null", "string"], "default": null }
  ]
}

<!-- pom.xml — thêm dependencies -->
<dependency>
    <groupId>io.confluent</groupId>
    <artifactId>kafka-avro-serializer</artifactId>
    <version>7.5.0</version>
</dependency>
<dependency>
    <groupId>io.confluent</groupId>
    <artifactId>kafka-schema-registry-client</artifactId>
    <version>7.5.0</version>
</dependency>

<!-- Avro Maven Plugin — generate Java classes từ .avsc -->
<plugin>
    <groupId>org.apache.avro</groupId>
    <artifactId>avro-maven-plugin</artifactId>
    <version>1.11.3</version>
    <executions>
        <execution>
            <phase>generate-sources</phase>
            <goals><goal>schema</goal></goals>
            <configuration>
                <sourceDirectory>${project.basedir}/src/main/avro</sourceDirectory>
                <outputDirectory>${project.build.directory}/generated-sources/avro</outputDirectory>
            </configuration>
        </execution>
    </executions>
</plugin>

# application.yml
spring:
  kafka:
    properties:
      schema.registry.url: http://localhost:8081
    producer:
      key-serializer: org.apache.kafka.common.serialization.StringSerializer
      value-serializer: io.confluent.kafka.serializers.KafkaAvroSerializer
    consumer:
      key-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      value-deserializer: io.confluent.kafka.serializers.KafkaAvroDeserializer
      properties:
        specific.avro.reader: true

// Producer với Avro
@Service
public class AvroOrderProducer {

    private final KafkaTemplate<String, OrderEvent> kafkaTemplate;

    public void publish(OrderEvent event) {
        // OrderEvent ở đây là Avro-generated class
        kafkaTemplate.send("order-events", event.getOrderId().toString(), event);
    }
}

// Consumer với Avro
@Service
public class AvroOrderConsumer {

    @KafkaListener(topics = "order-events", groupId = "order-service")
    public void handle(OrderEvent event) {
        // Avro tự handle schema evolution
        // Nếu producer gửi schema v2 nhưng consumer dùng v1,
        // Avro sẽ tự map compatible fields
        log.info("Order: {} - Amount: {} {}",
                event.getOrderId(),
                event.getAmount(),
                event.getCurrency()); // Default "USD" nếu producer cũ không gửi
    }
}

# List tất cả subjects
GET http://localhost:8081/subjects

# Lấy latest schema
GET http://localhost:8081/subjects/order-events-value/versions/latest

# Check compatibility trước khi register
POST http://localhost:8081/compatibility/subjects/order-events-value/versions/latest
Content-Type: application/json
{"schema": "{...}"}

# Set compatibility mode
PUT http://localhost:8081/config/order-events-value
Content-Type: application/json
{"compatibility": "BACKWARD"}

# Bật idempotent producer
spring:
  kafka:
    producer:
      properties:
        enable.idempotence: true
        # Kafka tự set các config sau khi idempotence=true:
        # acks=all
        # retries=Integer.MAX_VALUE
        # max.in.flight.requests.per.connection=5

// KafkaTransactionConfig.java
@Configuration
public class KafkaTransactionConfig {

    @Bean
    public ProducerFactory<String, Object> producerFactory() {
        Map<String, Object> props = new HashMap<>();
        props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class);
        props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, JsonSerializer.class);
        props.put(ProducerConfig.ENABLE_IDEMPOTENCE_CONFIG, true);
        // Transaction ID prefix — mỗi instance cần unique prefix
        props.put(ProducerConfig.TRANSACTIONAL_ID_CONFIG, "order-tx-");

        return new DefaultKafkaProducerFactory<>(props);
    }

    @Bean
    public KafkaTemplate<String, Object> kafkaTemplate() {
        return new KafkaTemplate<>(producerFactory());
    }

    @Bean
    public KafkaTransactionManager<String, Object> kafkaTransactionManager() {
        return new KafkaTransactionManager<>(producerFactory());
    }
}

// Transactional Producer — ghi vào nhiều topics atomically
@Service
public class TransactionalOrderService {

    private final KafkaTemplate<String, Object> kafkaTemplate;

    /**
     * Ghi vào 3 topics trong cùng 1 transaction.
     * Hoặc tất cả thành công, hoặc tất cả rollback.
     */
    public void processOrder(OrderEvent order) {
        kafkaTemplate.executeInTransaction(ops -> {
            // 1. Ghi order event
            ops.send("order-events", order.getOrderId(), order);

            // 2. Ghi payment request
            ops.send("payment-requests", order.getOrderId(),
                    new PaymentRequest(order.getOrderId(), order.getAmount()));

            // 3. Ghi audit log
            ops.send("audit-log", order.getOrderId(),
                    new AuditEntry("ORDER_CREATED", order.getOrderId()));

            // Nếu bất kỳ send nào fail → tất cả rollback
            return true;
        });
    }
}

// Consume-Transform-Produce pattern — EOS end-to-end
@Service
public class ExactlyOnceProcessor {

    private final KafkaTemplate<String, Object> kafkaTemplate;

    /**
     * Đọc từ topic A, transform, ghi vào topic B.
     * Consumer offset commit + producer send trong cùng transaction.
     */
    @KafkaListener(
            topics = "raw-orders",
            groupId = "order-processor",
            properties = {
                "isolation.level=read_committed"  // Chỉ đọc committed messages
            }
    )
    @Transactional("kafkaTransactionManager")
    public void processAndForward(OrderEvent rawOrder) {
        // Transform
        EnrichedOrder enriched = enrichOrder(rawOrder);

        // Produce (trong cùng transaction với consumer offset commit)
        kafkaTemplate.send("enriched-orders", enriched.getOrderId(), enriched);

        // Consumer offset tự động commit khi transaction commit
    }
}

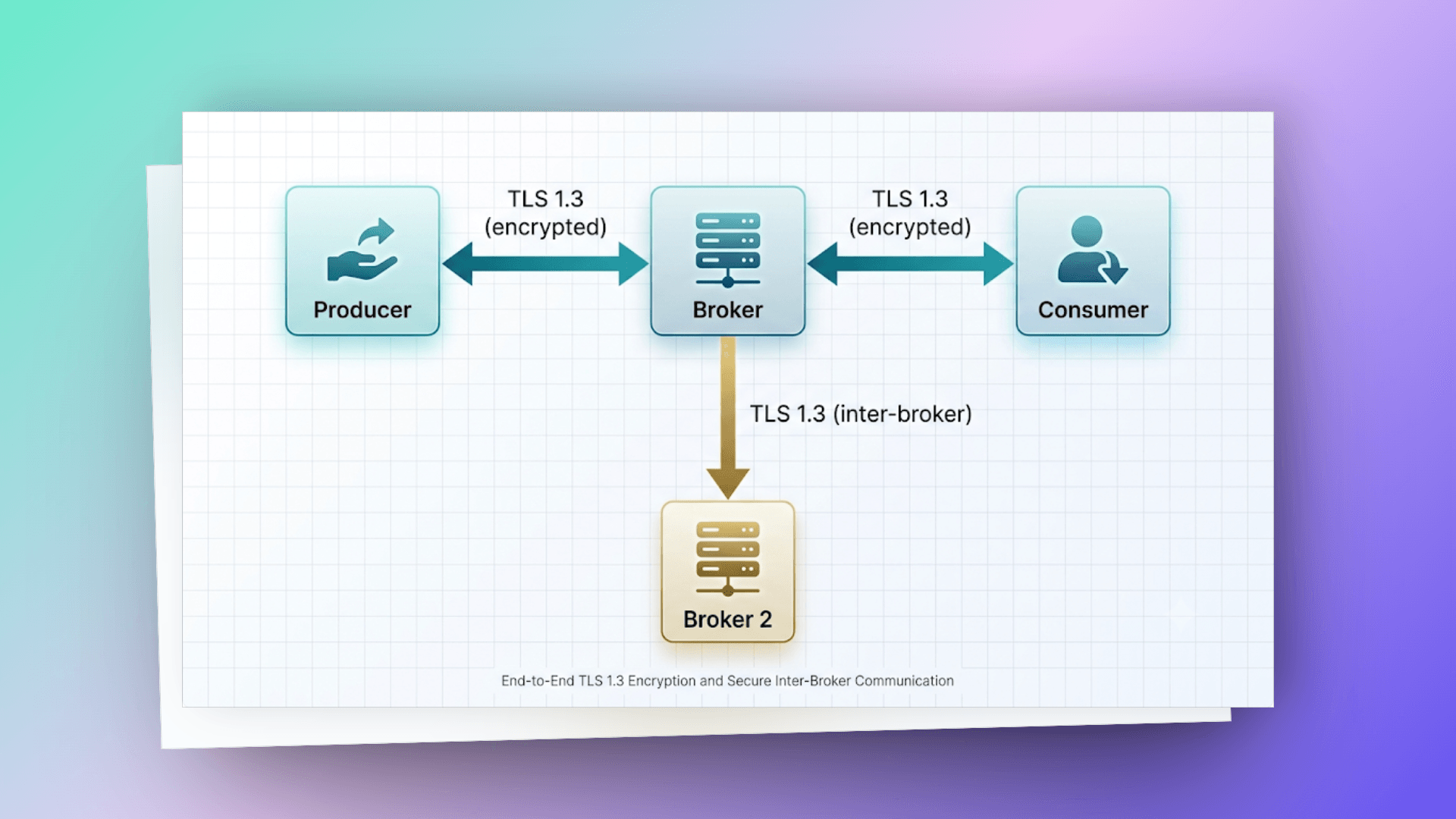

# application.yml — Producer/Consumer authentication
spring:
  kafka:
    bootstrap-servers: kafka-1:9093,kafka-2:9093,kafka-3:9093
    properties:
      security.protocol: SASL_SSL
      sasl.mechanism: SCRAM-SHA-512
      sasl.jaas.config: >
        org.apache.kafka.common.security.scram.ScramLoginModule required
        username="${KAFKA_USERNAME}"
        password="${KAFKA_PASSWORD}";
    ssl:
      trust-store-location: classpath:kafka-truststore.jks
      trust-store-password: ${TRUSTSTORE_PASSWORD}

# Cả client và server verify lẫn nhau
spring:
  kafka:
    properties:
      security.protocol: SSL
    ssl:
      key-store-location: classpath:kafka-keystore.jks
      key-store-password: ${KEYSTORE_PASSWORD}
      key-password: ${KEY_PASSWORD}
      trust-store-location: classpath:kafka-truststore.jks
      trust-store-password: ${TRUSTSTORE_PASSWORD}

# Cho phép user "order-service" đọc/ghi topic "order-events"
kafka-acls --bootstrap-server kafka:9093 \
    --command-config admin.properties \
    --add \
    --allow-principal User:order-service \
    --operation Read --operation Write \
    --topic order-events

# Cho phép consumer group
kafka-acls --bootstrap-server kafka:9093 \
    --command-config admin.properties \
    --add \
    --allow-principal User:order-service \
    --operation Read \
    --group order-service-group

# List ACLs
kafka-acls --bootstrap-server kafka:9093 \
    --command-config admin.properties \
    --list --topic order-events

// Custom encrypting serializer
public class EncryptingSerializer implements Serializer<Object> {

    private final ObjectMapper mapper = new ObjectMapper();
    private SecretKey secretKey;

    @Override
    public void configure(Map<String, ?> configs, boolean isKey) {
        String keyBase64 = (String) configs.get("encryption.key");
        byte[] keyBytes = Base64.getDecoder().decode(keyBase64);
        this.secretKey = new SecretKeySpec(keyBytes, "AES");
    }

    @Override
    public byte[] serialize(String topic, Object data) {
        try {
            byte[] jsonBytes = mapper.writeValueAsBytes(data);
            Cipher cipher = Cipher.getInstance("AES/GCM/NoPadding");
            byte[] iv = new byte[12];
            SecureRandom.getInstanceStrong().nextBytes(iv);
            cipher.init(Cipher.ENCRYPT_MODE, secretKey,
                    new GCMParameterSpec(128, iv));
            byte[] encrypted = cipher.doFinal(jsonBytes);

            // [iv_length(1)][iv(12)][encrypted_data]
            ByteBuffer buffer = ByteBuffer.allocate(1 + iv.length + encrypted.length);
            buffer.put((byte) iv.length);
            buffer.put(iv);
            buffer.put(encrypted);
            return buffer.array();
        } catch (Exception e) {
            throw new SerializationException("Encryption failed", e);
        }
    }
}

// ChainedTransactionManager — Kafka + JPA trong cùng 1 transaction
@Configuration
public class ChainedTransactionConfig {

    @Bean
    public ChainedKafkaTransactionManager<String, Object> chainedTxManager(
            KafkaTransactionManager<String, Object> kafkaTxManager,
            JpaTransactionManager jpaTxManager) {

        return new ChainedKafkaTransactionManager<>(kafkaTxManager, jpaTxManager);
    }
}

@Service
public class OrderServiceWithChainedTx {

    private final OrderRepository orderRepo;
    private final KafkaTemplate<String, Object> kafkaTemplate;

    /**
     * DB save + Kafka publish trong cùng 1 chained transaction.
     *
     * Lưu ý: Đây KHÔNG phải 2-phase commit thực sự.
     * Kafka commit trước, JPA commit sau.
     * Nếu JPA fail → Kafka đã commit → inconsistency.
     *
     * → Vẫn nên dùng Outbox pattern cho critical data.
     */
    @Transactional("chainedTxManager")
    public void createOrder(OrderEvent event) {
        Order order = new Order(event);
        orderRepo.save(order);
        kafkaTemplate.send("order-events", event.getOrderId(), event);
    }
}

@ExtendWith(MockitoExtension.class)
class OrderEventProducerTest {

    @Mock
    private KafkaTemplate<String, OrderEvent> kafkaTemplate;

    @InjectMocks
    private OrderEventProducer producer;

    @Test
    void shouldPublishOrderEvent() {
        // Given
        OrderEvent event = new OrderEvent(
                "order-1", "user-1", "Laptop",
                new BigDecimal("999.99"), OrderEvent.OrderStatus.CREATED);

        CompletableFuture<SendResult<String, OrderEvent>> future =
                CompletableFuture.completedFuture(mockSendResult());
        when(kafkaTemplate.send("order-events", "user-1", event))
                .thenReturn(future);

        // When
        producer.publishOrderEvent(event);

        // Then
        verify(kafkaTemplate).send("order-events", "user-1", event);
    }
}

@SpringBootTest
@EmbeddedKafka(
        partitions = 3,
        topics = {"order-events", "order-events.DLT"},
        brokerProperties = {
                "listeners=PLAINTEXT://localhost:9092",
                "port=9092"
        }
)
class OrderEventIntegrationTest {

    @Autowired
    private KafkaTemplate<String, OrderEvent> kafkaTemplate;

    @Autowired
    private EmbeddedKafkaBroker embeddedKafka;

    @SpyBean
    private OrderEventConsumer consumer;

    @Test
    void shouldProduceAndConsumeOrderEvent() throws Exception {
        // Given
        OrderEvent event = new OrderEvent(
                "order-1", "user-1", "Laptop",
                new BigDecimal("999.99"), OrderEvent.OrderStatus.CREATED);

        // When
        kafkaTemplate.send("order-events", event.getUserId(), event).get();

        // Then — verify consumer received the event
        // Dùng Awaitility vì Kafka consumer là async
        await().atMost(Duration.ofSeconds(10))
                .untilAsserted(() ->
                        verify(consumer).handleOrderEvent(
                                argThat(e -> e.getOrderId().equals("order-1")),
                                anyInt(), anyLong(), anyLong()));
    }

    @Test
    void shouldSendToDeadLetterTopicOnFailure() throws Exception {
        // Given — consumer sẽ throw exception
        doThrow(new RuntimeException("Processing failed"))
                .when(consumer).handleOrderEvent(any(), anyInt(), anyLong(), anyLong());

        OrderEvent event = new OrderEvent(
                "bad-order", "user-1", "Laptop",
                new BigDecimal("999.99"), OrderEvent.OrderStatus.CREATED);

        // When
        kafkaTemplate.send("order-events", event.getUserId(), event).get();

        // Then — verify message ends up in DLT after retries
        Map<String, Object> consumerProps = KafkaTestUtils.consumerProps(
                "test-dlt-group", "true", embeddedKafka);
        consumerProps.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG,
                JsonDeserializer.class);

        Consumer<String, OrderEvent> dltConsumer =
                new DefaultKafkaConsumerFactory<String, OrderEvent>(consumerProps)
                        .createConsumer();
        embeddedKafka.consumeFromAnEmbeddedTopic(dltConsumer, "order-events.DLT");

        ConsumerRecords<String, OrderEvent> records =
                KafkaTestUtils.getRecords(dltConsumer, Duration.ofSeconds(10));

        assertThat(records.count()).isGreaterThan(0);
        assertThat(records.iterator().next().value().getOrderId())
                .isEqualTo("bad-order");
    }
}

@SpringBootTest
@Testcontainers
class KafkaTestcontainersTest {

    @Container
    static KafkaContainer kafka = new KafkaContainer(
            DockerImageName.parse("confluentinc/cp-kafka:7.5.0"))

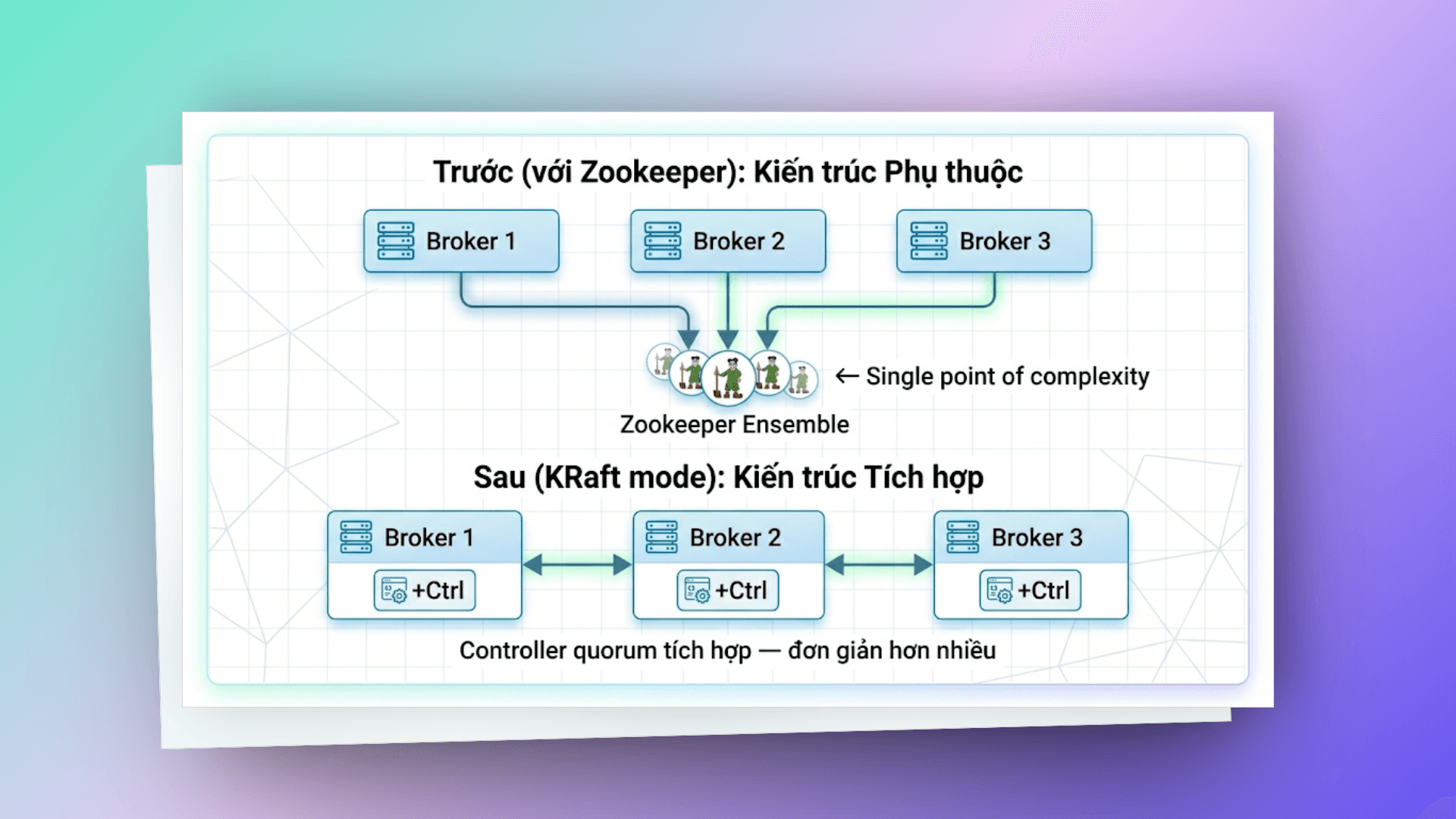

            .withKraft();  // KRaft mode — không cần Zookeeper

    @DynamicPropertySource
    static void kafkaProperties(DynamicPropertyRegistry registry) {
        registry.add("spring.kafka.bootstrap-servers", kafka::getBootstrapServers);
    }

    @Autowired
    private KafkaTemplate<String, OrderEvent> kafkaTemplate;

    @Test
    void shouldWorkWithRealKafka() throws Exception {
        OrderEvent event = new OrderEvent(
                "order-1", "user-1", "Laptop",
                new BigDecimal("999.99"), OrderEvent.OrderStatus.CREATED);

        SendResult<String, OrderEvent> result =
                kafkaTemplate.send("order-events", event.getUserId(), event).get();

        assertThat(result.getRecordMetadata().topic()).isEqualTo("order-events");
        assertThat(result.getRecordMetadata().offset()).isGreaterThanOrEqualTo(0);
    }
}

@SpringBootTest
@EmbeddedKafka(topics = "order-events")
class OrderConsumerBusinessLogicTest {

    @Autowired
    private KafkaTemplate<String, OrderEvent> kafkaTemplate;

    @Autowired
    private OrderRepository orderRepository;

    @Test
    void shouldPersistOrderWhenEventReceived() throws Exception {
        // Given
        OrderEvent event = new OrderEvent(
                "order-42", "user-7", "MacBook Pro",
                new BigDecimal("2499.99"), OrderEvent.OrderStatus.CREATED);

        // When
        kafkaTemplate.send("order-events", event.getUserId(), event).get();

        // Then
        await().atMost(Duration.ofSeconds(10))
                .untilAsserted(() -> {
                    Optional<Order> order = orderRepository.findById("order-42");
                    assertThat(order).isPresent();
                    assertThat(order.get().getStatus()).isEqualTo("CREATED");
                    assertThat(order.get().getAmount())
                            .isEqualByComparingTo(new BigDecimal("2499.99"));
                });
    }
}

# kafka-cluster.yaml — Strimzi CRD
apiVersion: kafka.strimzi.io/v1beta2
kind: Kafka
metadata:
  name: production-cluster
  namespace: kafka
spec:
  kafka:
    version: 3.6.0
    replicas: 3
    listeners:
      - name: plain
        port: 9092
        type: internal
        tls: false
      - name: tls
        port: 9093
        type: internal
        tls: true
        authentication:
          type: scram-sha-512
      - name: external
        port: 9094
        type: loadbalancer
        tls: true
    config:
      offsets.topic.replication.factor: 3
      transaction.state.log.replication.factor: 3
      transaction.state.log.min.isr: 2
      default.replication.factor: 3
      min.insync.replicas: 2
      num.partitions: 6
      log.retention.hours: 168 # 7 ngày
    storage:
      type: persistent-claim
      size: 100Gi
      class: gp3 # AWS EBS gp3
    resources:
      requests:
        memory: 4Gi
        cpu: '2'
      limits:
        memory: 8Gi
        cpu: '4'
    jvmOptions:
      -Xms: 2048m
      -Xmx: 4096m
    rack:
      topologyKey: topology.kubernetes.io/zone # Spread across AZs
  zookeeper:
    replicas: 3
    storage:
      type: persistent-claim
      size: 20Gi
      class: gp3
    resources:
      requests:
        memory: 1Gi
        cpu: '0.5'
  entityOperator:
    topicOperator: {}
    userOperator: {}

# KafkaTopic CRD — quản lý topics declaratively
apiVersion: kafka.strimzi.io/v1beta2
kind: KafkaTopic
metadata:
  name: order-events
  namespace: kafka
  labels:
    strimzi.io/cluster: production-cluster
spec:
  partitions: 12
  replicas: 3
  config:
    retention.ms: 604800000 # 7 ngày
    min.insync.replicas: 2
    cleanup.policy: delete
    max.message.bytes: 1048576 # 1MB
---
# KafkaUser CRD — quản lý users + ACLs
apiVersion: kafka.strimzi.io/v1beta2
kind: KafkaUser
metadata:
  name: order-service
  namespace: kafka
  labels:
    strimzi.io/cluster: production-cluster
spec:
  authentication:
    type: scram-sha-512
  authorization:
    type: simple
    acls:
      - resource:
          type: topic
          name: order-events
          patternType: literal
        operations: [Read, Write, Describe]
      - resource:
          type: group
          name: order-service
          patternType: prefix
        operations: [Read]

# order-service-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: order-service
spec:
  replicas: 3 # Match hoặc ít hơn số partitions
  selector:
    matchLabels:
      app: order-service
  template:
    metadata:
      labels:
        app: order-service
    spec:
      containers:
        - name: order-service
          image: order-service:latest
          env:
            - name: SPRING_KAFKA_BOOTSTRAP_SERVERS
              value: 'production-cluster-kafka-bootstrap.kafka.svc:9092'
            - name: SPRING_KAFKA_CONSUMER_GROUP_ID
              # Dùng cùng group-id cho tất cả replicas
              # Kafka sẽ tự distribute partitions
              value: 'order-service'
            - name: KAFKA_USERNAME
              valueFrom:
                secretKeyRef:
                  name: order-service
                  key: username
            - name: KAFKA_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: order-service
                  key: password
          resources:
            requests:
              memory: 512Mi
              cpu: 250m
            limits:
              memory: 1Gi
              cpu: 500m
          # Liveness probe — app còn sống không
          livenessProbe:
            httpGet:
              path: /actuator/health/liveness
              port: 8080
            initialDelaySeconds: 30
            periodSeconds: 10
          # Readiness probe — app sẵn sàng nhận traffic không
          readinessProbe:
            httpGet:
              path: /actuator/health/readiness
              port: 8080
            initialDelaySeconds: 20
            periodSeconds: 5
      # Graceful shutdown — đợi consumer commit offset
      terminationGracePeriodSeconds: 60

// KafkaGracefulShutdown.java
@Configuration
public class KafkaGracefulShutdown {

    @Bean
    public ConcurrentKafkaListenerContainerFactory<String, OrderEvent>
            kafkaListenerContainerFactory(ConsumerFactory<String, OrderEvent> cf) {

        ConcurrentKafkaListenerContainerFactory<String, OrderEvent> factory =
                new ConcurrentKafkaListenerContainerFactory<>();
        factory.setConsumerFactory(cf);

        // Đợi messages đang xử lý hoàn thành trước khi shutdown
        factory.getContainerProperties()
                .setShutdownTimeout(30000L); // 30 giây

        return factory;
    }
}

# application.yml
spring:
  lifecycle:
    timeout-per-shutdown-phase: 30s
server:
  shutdown: graceful

{

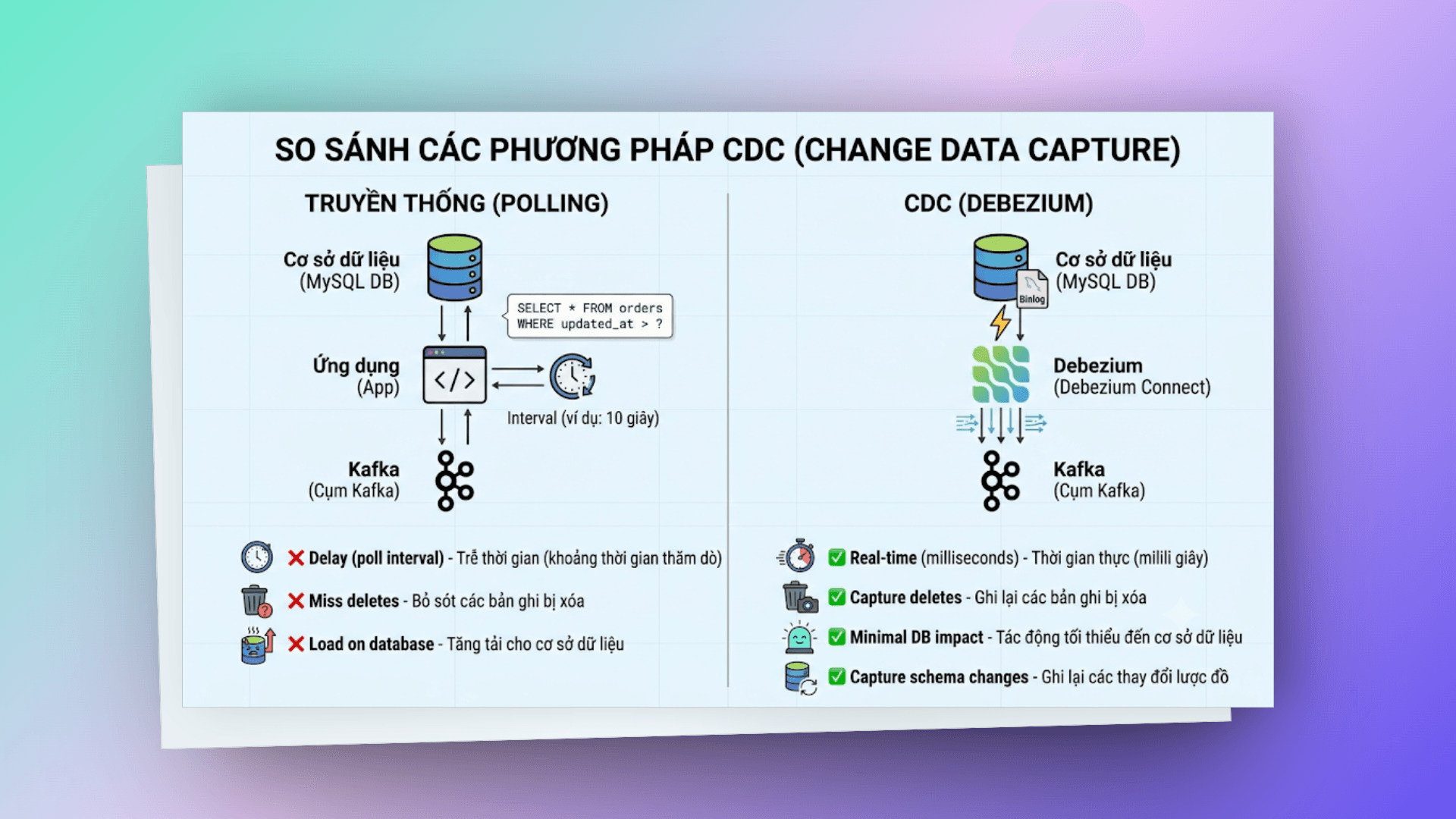

  "name": "mysql-cdc-connector",
  "config": {
    "connector.class": "io.debezium.connector.mysql.MySqlConnector",
    "database.hostname": "mysql",
    "database.port": "3306",
    "database.user": "debezium",
    "database.password": "${file:/secrets/debezium.properties:password}",
    "database.server.id": "184054",

    "topic.prefix": "cdc",
    "database.include.list": "ecommerce",
    "table.include.list": "ecommerce.orders,ecommerce.order_items",

    "schema.history.internal.kafka.bootstrap.servers": "kafka:9092",
    "schema.history.internal.kafka.topic": "schema-changes.ecommerce",

    "include.schema.changes": "true",
    "transforms": "unwrap",
    "transforms.unwrap.type": "io.debezium.transforms.ExtractNewRecordState",
    "transforms.unwrap.drop.tombstones": "false",
    "transforms.unwrap.delete.handling.mode": "rewrite",

    "snapshot.mode": "initial",
    "decimal.handling.mode": "string",
    "time.precision.mode": "connect"
  }
}

// Topic: cdc.ecommerce.orders
// Khi INSERT
{
  "before": null,
  "after": {
    "id": 1001,
    "user_id": "user-42",
    "amount": "299.99",
    "status": "CREATED",
    "created_at": 1698765432000
  },
  "source": {
    "version": "2.4.0",
    "connector": "mysql",
    "name": "cdc",
    "ts_ms": 1698765432000,
    "db": "ecommerce",
    "table": "orders",
    "server_id": 184054,
    "file": "mysql-bin.000003",
    "pos": 1234
  },
  "op": "c", // c=create, u=update, d=delete, r=read(snapshot)
  "ts_ms": 1698765432100
}

@Service
@Slf4j
public class CdcOrderConsumer {

    @KafkaListener(topics = "cdc.ecommerce.orders", groupId = "search-indexer")
    public void handleCdcEvent(
            @Payload String payload,
            @Header("__op") String operation) {

        switch (operation) {
            case "c", "r" -> {
                // Create hoặc Snapshot read → index document
                OrderDocument doc = parseOrder(payload);
                elasticsearchClient.index(doc);
                log.info("Indexed order: {}", doc.getId());
            }
            case "u" -> {
                // Update → update document
                OrderDocument doc = parseOrder(payload);
                elasticsearchClient.update(doc);
                log.info("Updated order: {}", doc.getId());
            }
            case "d" -> {
                // Delete → remove document
                String orderId = parseOrderId(payload);
                elasticsearchClient.delete(orderId);
                log.info("Deleted order: {}", orderId);
            }
        }
    }
}

// TracingProducerInterceptor.java — tự động inject trace headers
public class TracingProducerInterceptor
        implements ProducerInterceptor<String, Object> {

    @Override
    public ProducerRecord<String, Object> onSend(
            ProducerRecord<String, Object> record) {

        // Inject trace context vào headers
        Span currentSpan = Span.current();
        if (currentSpan != null) {
            SpanContext ctx = currentSpan.getSpanContext();
            record.headers()
                    .add("traceId", ctx.getTraceId().getBytes(UTF_8))
                    .add("spanId", ctx.getSpanId().getBytes(UTF_8))
                    .add("producedAt",
                            String.valueOf(System.currentTimeMillis()).getBytes(UTF_8))
                    .add("producerService", "order-service".getBytes(UTF_8));
        }
        return record;
    }

    @Override
    public void onAcknowledgement(RecordMetadata metadata, Exception exception) {
        if (exception != null) {
            // Metric: kafka_producer_errors_total
            Metrics.counter("kafka.producer.errors").increment();
        }
    }

    @Override public void close() {}
    @Override public void configure(Map<String, ?> configs) {}
}

// TracingConsumerInterceptor.java — extract trace headers
public class TracingConsumerInterceptor
        implements ConsumerInterceptor<String, Object> {

    @Override
    public ConsumerRecords<String, Object> onConsume(
            ConsumerRecords<String, Object> records) {

        records.forEach(record -> {
            Header traceIdHeader = record.headers().lastHeader("traceId");
            if (traceIdHeader != null) {
                String traceId = new String(traceIdHeader.value(), UTF_8);
                MDC.put("traceId", traceId);  // Inject vào logging context
            }

            Header producedAtHeader = record.headers().lastHeader("producedAt");
            if (producedAtHeader != null) {
                long producedAt = Long.parseLong(
                        new String(producedAtHeader.value(), UTF_8));
                long lag = System.currentTimeMillis() - producedAt;
                // Metric: thời gian từ produce đến consume
                Metrics.timer("kafka.consumer.e2e.latency")
                        .record(lag, TimeUnit.MILLISECONDS);
            }
        });
        return records;
    }

    @Override public void onCommit(Map<TopicPartition, OffsetAndMetadata> offsets) {}
    @Override public void close() {}
    @Override public void configure(Map<String, ?> configs) {}
}

# Đăng ký interceptors
spring:
  kafka:
    producer:
      properties:
        interceptor.classes: com.example.TracingProducerInterceptor
    consumer:
      properties:
        interceptor.classes: com.example.TracingConsumerInterceptor

// Chỉ forward một số headers nhất định
@Configuration
public class KafkaHeaderConfig {

    @Bean
    public ConcurrentKafkaListenerContainerFactory<String, Object>
            filteredHeaderFactory(ConsumerFactory<String, Object> cf) {

        ConcurrentKafkaListenerContainerFactory<String, Object> factory =
                new ConcurrentKafkaListenerContainerFactory<>();
        factory.setConsumerFactory(cf);

        // Chỉ giữ lại headers bắt đầu bằng "x-" hoặc "trace"
        factory.setRecordFilterStrategy(record -> {
            Header retryCount = record.headers().lastHeader("x-retry-count");
            if (retryCount != null) {
                int count = Integer.parseInt(
                        new String(retryCount.value(), UTF_8));
                return count > 5; // Filter out messages đã retry quá 5 lần
            }
            return false;
        });

        return factory;
    }
}

# ===== TOPIC MANAGEMENT =====

# List topics
kafka-topics --bootstrap-server localhost:9092 --list

# Describe topic (xem partitions, replicas, ISR)
kafka-topics --bootstrap-server localhost:9092 \
    --describe --topic order-events

# Tạo topic
kafka-topics --bootstrap-server localhost:9092 \
    --create --topic order-events \
    --partitions 12 --replication-factor 3

# Tăng partitions (KHÔNG THỂ GIẢM)
kafka-topics --bootstrap-server localhost:9092 \
    --alter --topic order-events --partitions 24

# Xóa topic
kafka-topics --bootstrap-server localhost:9092 \
    --delete --topic order-events


# ===== CONSUMER GROUP MANAGEMENT =====

# List consumer groups
kafka-consumer-groups --bootstrap-server localhost:9092 --list

# Describe group (xem lag, assigned partitions)
kafka-consumer-groups --bootstrap-server localhost:9092 \
    --describe --group order-service

# Output:
# TOPIC          PARTITION  CURRENT-OFFSET  LOG-END-OFFSET  LAG
# order-events   0          1847            1850            3
# order-events   1          2103            2103            0
# order-events   2          1956            1960            4

# Reset offset về earliest (consumer group phải STOPPED)
kafka-consumer-groups --bootstrap-server localhost:9092 \
    --group order-service \
    --topic order-events \
    --reset-offsets --to-earliest \
    --execute

# Reset offset về specific timestamp
kafka-consumer-groups --bootstrap-server localhost:9092 \
    --group order-service \
    --topic order-events \
    --reset-offsets --to-datetime "2024-01-15T00:00:00.000" \
    --execute

# Reset offset shift by -100 (đọc lại 100 messages)
kafka-consumer-groups --bootstrap-server localhost:9092 \
    --group order-service \
    --topic order-events \
    --reset-offsets --shift-by -100 \
    --execute


# ===== PRODUCE & CONSUME (Debug) =====

# Produce test message
echo '{"orderId":"test-1","status":"CREATED"}' | \
kafka-console-producer --bootstrap-server localhost:9092 \
    --topic order-events \
    --property "key.separator=:" \
    --property "parse.key=true"

# Consume từ beginning
kafka-console-consumer --bootstrap-server localhost:9092 \
    --topic order-events \
    --from-beginning \
    --max-messages 10 \
    --property print.key=true \
    --property print.timestamp=true \
    --property print.partition=true


# ===== CLUSTER HEALTH =====

# Describe cluster
kafka-metadata --bootstrap-server localhost:9092 --describe

# Check under-replicated partitions
kafka-topics --bootstrap-server localhost:9092 \
    --describe --under-replicated-partitions

# Check unavailable partitions
kafka-topics --bootstrap-server localhost:9092 \
    --describe --unavailable-partitions

# Khi thêm broker mới, data không tự động move.
# Bạn cần reassign partitions manually.

# 1. Generate reassignment plan
kafka-reassign-partitions --bootstrap-server localhost:9092 \
    --topics-to-move-json-file topics.json \
    --broker-list "0,1,2,3" \
    --generate

# topics.json:
# {"topics": [{"topic": "order-events"}], "version": 1}

# 2. Execute reassignment
kafka-reassign-partitions --bootstrap-server localhost:9092 \
    --reassignment-json-file reassignment.json \
    --execute \
    --throttle 50000000  # 50MB/s — tránh overload network

# 3. Verify completion
kafka-reassign-partitions --bootstrap-server localhost:9092 \
    --reassignment-json-file reassignment.json \
    --verify

# docker-compose monitoring stack
services:
  kafka-exporter:
    image: danielqsj/kafka-exporter:latest
    command:
      - '--kafka.server=kafka-1:9092'
      - '--kafka.server=kafka-2:9092'
      - '--kafka.server=kafka-3:9092'
    ports:
      - '9308:9308'

  jmx-exporter:
    # JMX exporter chạy như Java agent trên mỗi broker
    # Thêm vào KAFKA_OPTS:
    # -javaagent:/opt/jmx-exporter/jmx_prometheus_javaagent.jar=7071:/opt/jmx-exporter/kafka-broker.yml

  prometheus:
    image: prom/prometheus:latest
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml
    ports:
      - '9090:9090'

  grafana:
    image: grafana/grafana:latest
    ports:
      - '3000:3000'
    environment:
      GF_SECURITY_ADMIN_PASSWORD: admin

# prometheus.yml
scrape_configs:
  - job_name: 'kafka-exporter'
    static_configs:
      - targets: ['kafka-exporter:9308']
    scrape_interval: 15s

  - job_name: 'kafka-jmx'
    static_configs:
      - targets:
          - 'kafka-1:7071'
          - 'kafka-2:7071'
          - 'kafka-3:7071'
    scrape_interval: 15s

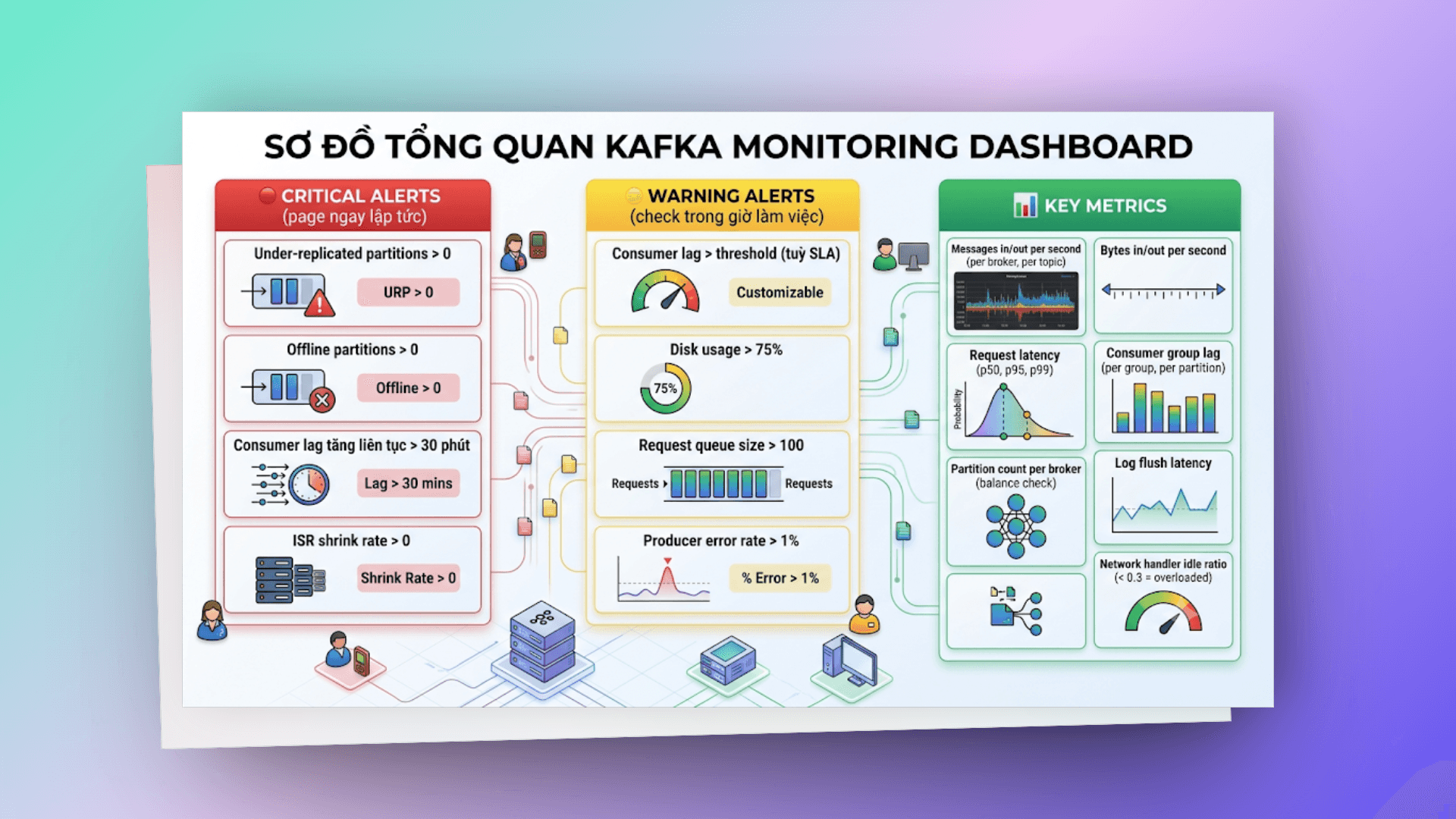

# prometheus-alerts.yml
groups:
  - name: kafka-alerts
    rules:
      - alert: KafkaUnderReplicatedPartitions
        expr: kafka_server_replica_manager_under_replicated_partitions > 0
        for: 5m
        labels:
          severity: critical
        annotations:
          summary: 'Kafka has under-replicated partitions'
          description: 'Broker {{ $labels.instance }} has {{ $value }} under-replicated partitions'

      - alert: KafkaConsumerLagHigh
        expr: kafka_consumergroup_lag_sum > 10000
        for: 15m
        labels:
          severity: warning
        annotations:
          summary: 'Consumer group {{ $labels.consumergroup }} lag is high'
          description: 'Lag: {{ $value }} messages on topic {{ $labels.topic }}'

      - alert: KafkaBrokerDiskUsageHigh
        expr: (1 - node_filesystem_avail_bytes{mountpoint="/kafka-data"} / node_filesystem_size_bytes{mountpoint="/kafka-data"}) > 0.75
        for: 10m
        labels:
          severity: warning
        annotations:
          summary: 'Kafka broker disk usage > 75%'

      - alert: KafkaOfflinePartitions
        expr: kafka_controller_kafkacontroller_offline_partitions_count > 0
        for: 1m
        labels:
          severity: critical
        annotations:
          summary: 'Kafka has offline partitions — DATA UNAVAILABLE'

// Thay vì gửi file 50MB qua Kafka:
// 1. Upload file lên S3
// 2. Gửi reference (claim check) qua Kafka

@Service
public class ClaimCheckProducer {

    private final S3Client s3Client;
    private final KafkaTemplate<String, ClaimCheckEvent> kafkaTemplate;

    public void publishLargePayload(String key, byte[] largePayload) {
        // 1. Store payload in S3
        String s3Key = "kafka-payloads/" + UUID.randomUUID();
        s3Client.putObject(
                PutObjectRequest.builder()
                        .bucket("kafka-large-messages")
                        .key(s3Key)
                        .build(),
                RequestBody.fromBytes(largePayload));

        // 2. Send claim check to Kafka
        ClaimCheckEvent event = new ClaimCheckEvent(
                s3Key,
                largePayload.length,
                "s3://kafka-large-messages/" + s3Key
        );
        kafkaTemplate.send("large-events", key, event);
    }
}

// Consumer retrieves from S3
@Service
public class ClaimCheckConsumer {

    private final S3Client s3Client;

    @KafkaListener(topics = "large-events", groupId = "processor")
    public void handle(ClaimCheckEvent event) {
        // Fetch actual payload from S3
        byte[] payload = s3Client.getObjectAsBytes(
                GetObjectRequest.builder()
                        .bucket("kafka-large-messages")
                        .key(event.getS3Key())
                        .build()
        ).asByteArray();

        processLargePayload(payload);
    }
}

// Tạo topics theo priority level
// order-events-high
// order-events-medium
// order-events-low

@Service
public class PriorityProducer {

    private final KafkaTemplate<String, OrderEvent> kafkaTemplate;

    public void publish(OrderEvent event, Priority priority) {
        String topic = switch (priority) {
            case HIGH   -> "order-events-high";
            case MEDIUM -> "order-events-medium";
            case LOW    -> "order-events-low";
        };
        kafkaTemplate.send(topic, event.getOrderId(), event);
    }
}

// Consumer xử lý high priority trước
@Service
public class PriorityConsumer {

    // High priority — nhiều consumers hơn
    @KafkaListener(topics = "order-events-high",
            groupId = "order-processor", concurrency = "6")
    public void handleHigh(OrderEvent event) {
        processOrder(event);
    }

    // Medium priority
    @KafkaListener(topics = "order-events-medium",
            groupId = "order-processor", concurrency = "3")
    public void handleMedium(OrderEvent event) {
        processOrder(event);
    }

    // Low priority — ít consumers
    @KafkaListener(topics = "order-events-low",
            groupId = "order-processor", concurrency = "1")
    public void handleLow(OrderEvent event) {
        processOrder(event);
    }
}

@Service
public class DelayedMessageProcessor {

    private final KafkaTemplate<String, DelayedEvent> kafkaTemplate;

    // Producer: gửi message với scheduled time
    public void scheduleEvent(OrderEvent event, Duration delay) {
        DelayedEvent delayed = new DelayedEvent(
                event,
                Instant.now().plus(delay).toEpochMilli()
        );
        kafkaTemplate.send("delayed-events", event.getOrderId(), delayed);
    }

    // Consumer: check nếu đến giờ thì xử lý, chưa thì gửi lại
    @KafkaListener(topics = "delayed-events", groupId = "delay-processor")
    public void handleDelayed(DelayedEvent event) {
        long now = System.currentTimeMillis();

        if (now >= event.getScheduledAt()) {
            // Đến giờ → forward sang topic chính
            kafkaTemplate.send("order-events",
                    event.getPayload().getOrderId(),
                    event.getPayload());
        } else {
            // Chưa đến giờ → gửi lại vào delayed topic
            // ⚠️ Cẩn thận: approach này tạo loop, cần rate limiting
            long sleepMs = Math.min(
                    event.getScheduledAt() - now,
                    5000L  // Max sleep 5 giây
            );
            try {
                Thread.sleep(sleepMs);
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
            }
            kafkaTemplate.send("delayed-events",
                    event.getPayload().getOrderId(), event);
        }
    }
}

// Config ReplyingKafkaTemplate
@Configuration
public class RequestReplyConfig {

    @Bean
    public ReplyingKafkaTemplate<String, OrderRequest, OrderResponse>
            replyingTemplate(
                    ProducerFactory<String, OrderRequest> pf,
                    ConcurrentMessageListenerContainer<String, OrderResponse> container) {

        ReplyingKafkaTemplate<String, OrderRequest, OrderResponse> template =
                new ReplyingKafkaTemplate<>(pf, container);
        template.setDefaultReplyTimeout(Duration.ofSeconds(10));
        return template;
    }

    @Bean
    public ConcurrentMessageListenerContainer<String, OrderResponse>
            replyContainer(ConsumerFactory<String, OrderResponse> cf) {

        ContainerProperties props = new ContainerProperties("order-replies");
        return new ConcurrentMessageListenerContainer<>(cf, props);
    }
}

// Client — gửi request và đợi reply
@Service
public class OrderClient {

    private final ReplyingKafkaTemplate<String, OrderRequest, OrderResponse>
            replyingTemplate;

    public OrderResponse getOrderStatus(String orderId) throws Exception {
        ProducerRecord<String, OrderRequest> record =
                new ProducerRecord<>("order-requests", orderId,
                        new OrderRequest(orderId, "GET_STATUS"));

        // Kafka tự set reply topic header
        RequestReplyFuture<String, OrderRequest, OrderResponse> future =
                replyingTemplate.sendAndReceive(record);

        // Block và đợi reply (có timeout)
        ConsumerRecord<String, OrderResponse> response =
                future.get(10, TimeUnit.SECONDS);

        return response.value();
    }
}

// Server — xử lý request và gửi reply
@Service
public class OrderRequestHandler {

    @KafkaListener(topics = "order-requests", groupId = "order-handler")
    @SendTo  // Tự động reply về topic trong header
    public OrderResponse handleRequest(OrderRequest request) {
        return switch (request.getAction()) {
            case "GET_STATUS" -> new OrderResponse(
                    request.getOrderId(),
                    orderService.getStatus(request.getOrderId()));
            default -> new OrderResponse(
                    request.getOrderId(), "UNKNOWN_ACTION");
        };
    }
}

# docker-compose KRaft mode
services:
  kafka:
    image: apache/kafka:3.7.0
    ports:
      - '9092:9092'
    environment:
      KAFKA_NODE_ID: 1
      KAFKA_PROCESS_ROLES: broker,controller
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9092,CONTROLLER://0.0.0.0:9093
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://localhost:9092
      KAFKA_CONTROLLER_LISTENER_NAMES: CONTROLLER
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: CONTROLLER:PLAINTEXT,PLAINTEXT:PLAINTEXT
      KAFKA_CONTROLLER_QUORUM_VOTERS: 1@kafka:9093
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 1
      CLUSTER_ID: 'MkU3OEVBNTcwNTJENDM2Qk'

# Producer benchmark
kafka-producer-perf-test \
    --topic perf-test \
    --num-records 1000000 \
    --record-size 1024 \
    --throughput -1 \
    --producer-props \
        bootstrap.servers=localhost:9092 \
        acks=all \
        linger.ms=5 \
        batch.size=65536 \
        compression.type=lz4

# Output:
# 1000000 records sent, 285714.3 records/sec (278.89 MB/sec),
# 3.2 ms avg latency, 87.0 ms max latency

# Consumer benchmark
kafka-consumer-perf-test \
    --bootstrap-server localhost:9092 \
    --topic perf-test \
    --messages 1000000 \
    --threads 3

# Output:
# start.time, end.time, data.consumed.in.MB, MB.sec,
# data.consumed.in.nMsg, nMsg.sec
# 2024-01-15 10:00:00, 2024-01-15 10:00:04, 976.56, 244.14,
# 1000000, 250000.0
